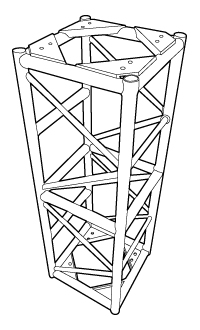

Medium Duty Trussing
Checklist
  • What uniformly distributed load do you require or should you be looking at CPL , TPL or QPL?
  • What maximum span do you want to achieve?
  • Check the loads against the span in the load tables for Generic Trussing
  • What truss do you need? Medium or Light duty trussing?
  • Do you need corner blocks?
  • Are truss pick-ups needed
  • What length do you need? 2, 4, 6, 8-feet sections available!
  • Do you need any other equipment?



Information
{Information}



Technical Specifications


METRIC

SPAN (METRES)

2

4

6

8

10

12

14

16

18

N/A

N/A

UDL kg

2581

2561

2540

2015

1575

1275

1055

886

749

N/A

N/A

DEFL mm

0

3

10

23

29

43

58

77

99

N/A

N/A

CPL kg

2581

2075

1366

1007

788

638

528

443

374

N/A

N/A

DEFL mm

1

4

8

15

24

35

48

65

84

N/A

N/A

TPL kg

1290

1281

1025

756

591

478

396

332

281

N/A

N/A

DEFL mm

0

4

11

19

30

43

60

78

100

N/A

N/A

QPL kg

860

854

684

503

393

319

264

221

187

N/A

N/A

DEFL mm

0

4

10

18

28

41

56

74

95

N/A

N/A


These figures are for trusses manufactured from 6082 Aluminium alloy by Total Fabrications Limited and designed in accordance with BS 8118 The Structural Use of Aluminium.
